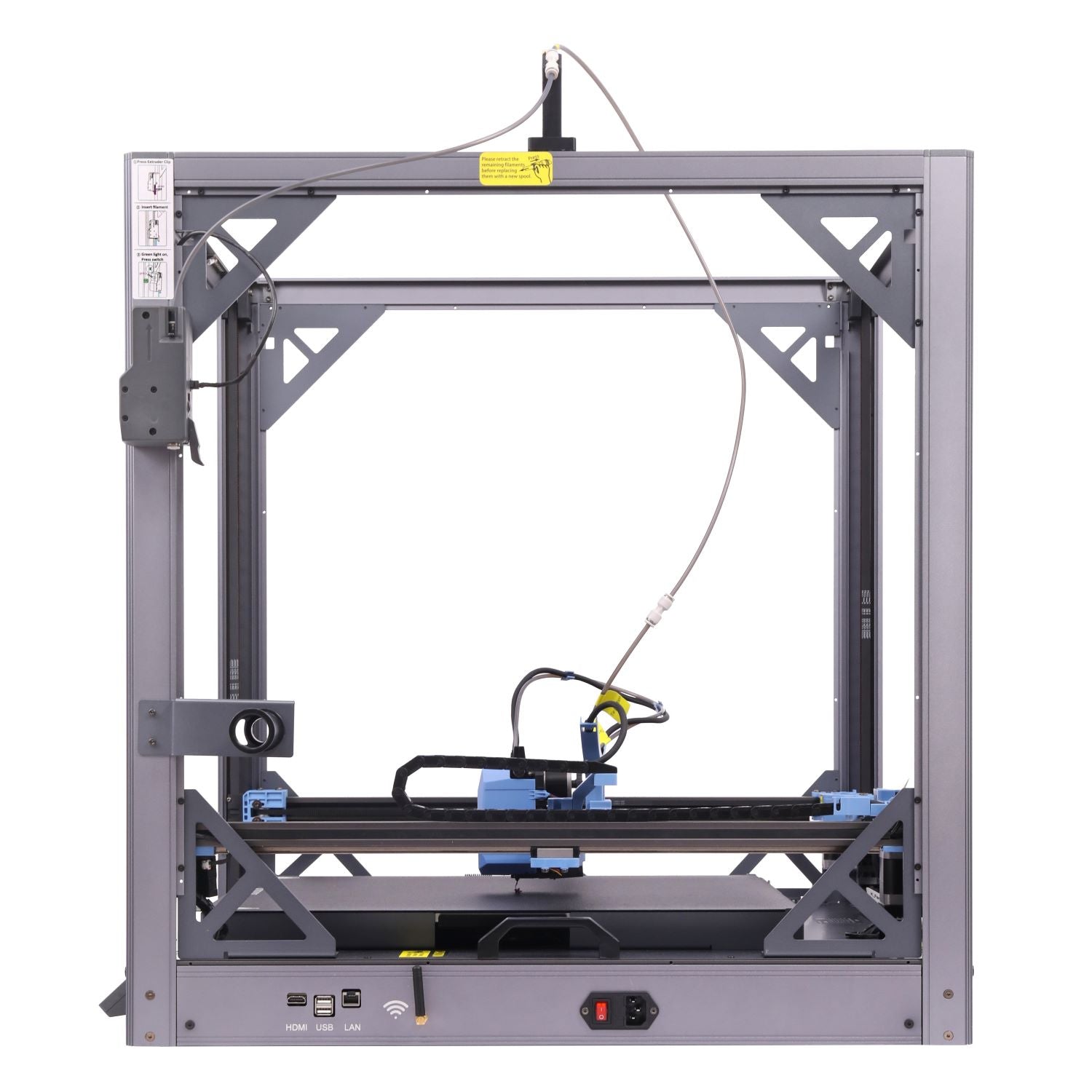

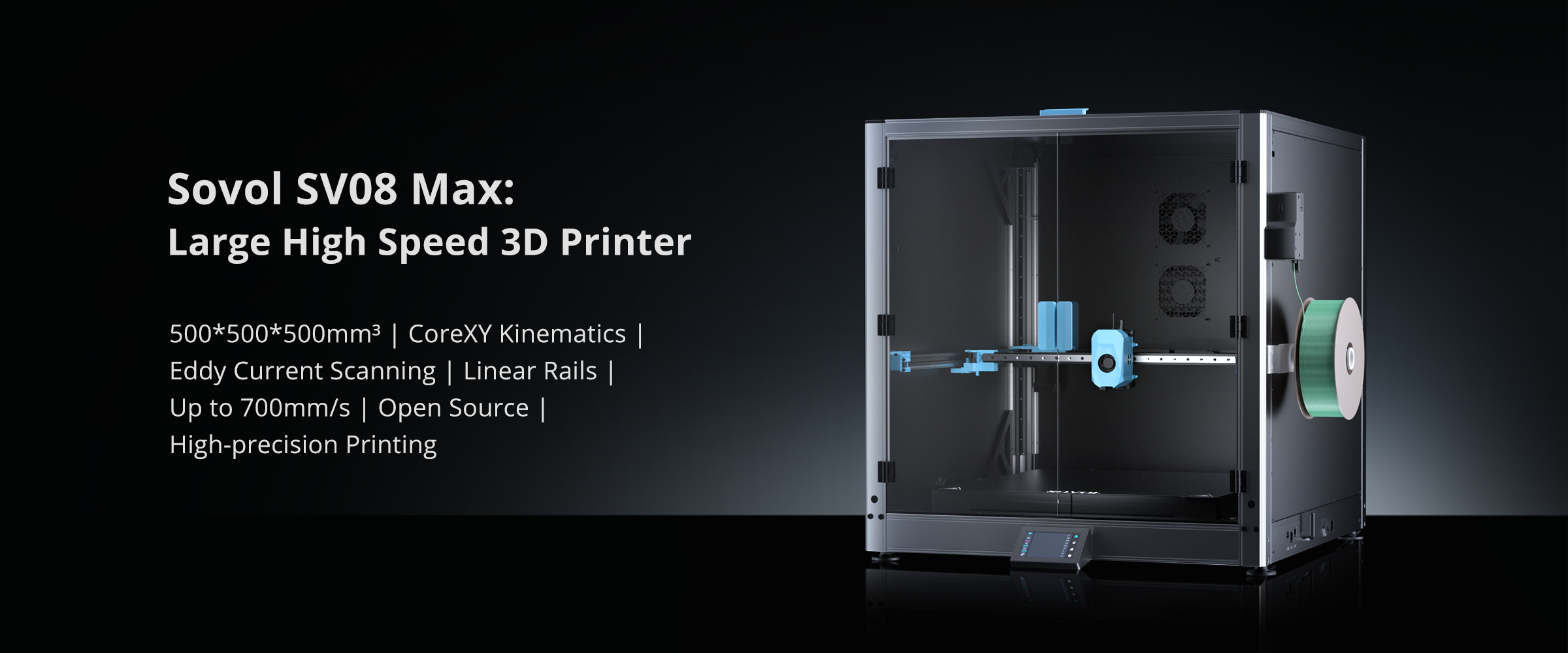

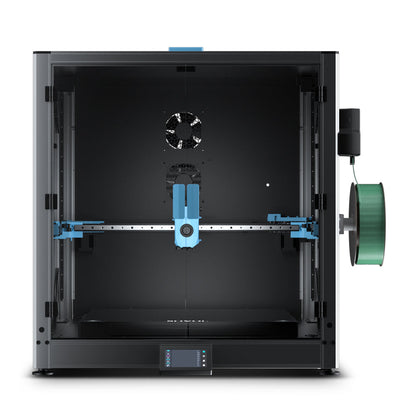

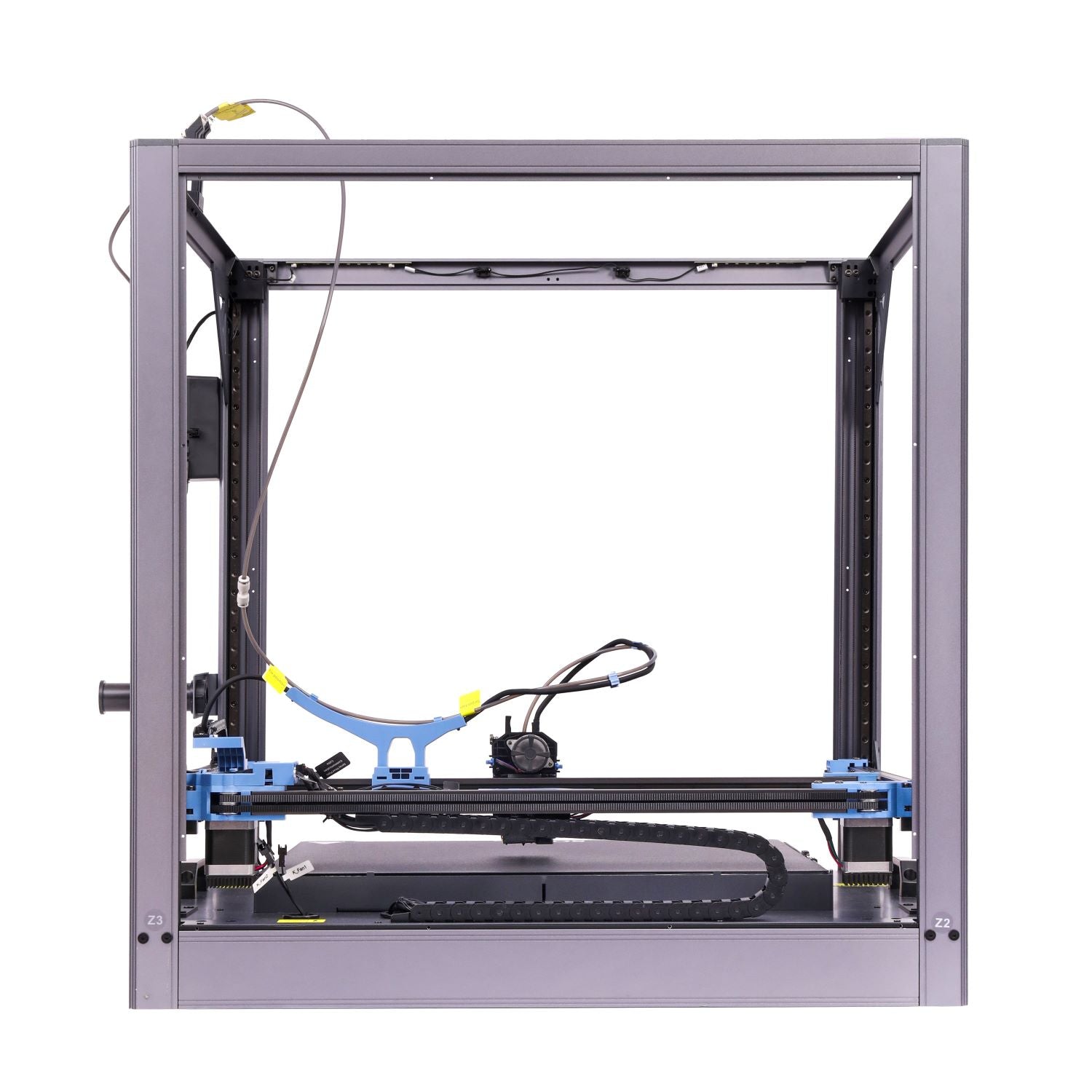

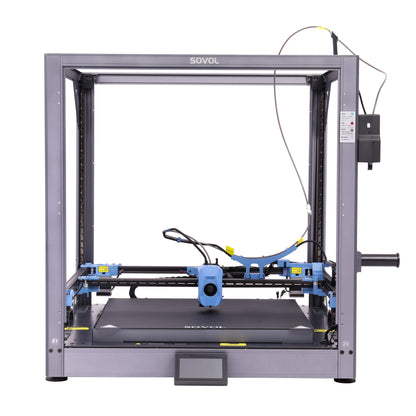

Sovol SV08 Max 3D Printer
- Up to 700mm/s
- CoreXY Kinematics
- XYZ Full Linear Rails
- Aluminum Alloy Frame
- Eddy Current Scanning
- Nozzle Temperature: ≤300℃ (572℉)
- Hot bed Temperature: ≤100℃ (212℉)
- Optional chamber heating module.
- Build Volume: 500×500×500 mm³ (500*500*450 mm³ with enclosure kit)
Pairs well with
Free UK shipping
1-Year Warranty
14-Day Returns
Lifetime Support
Sovol SV08 Max 3D Printer

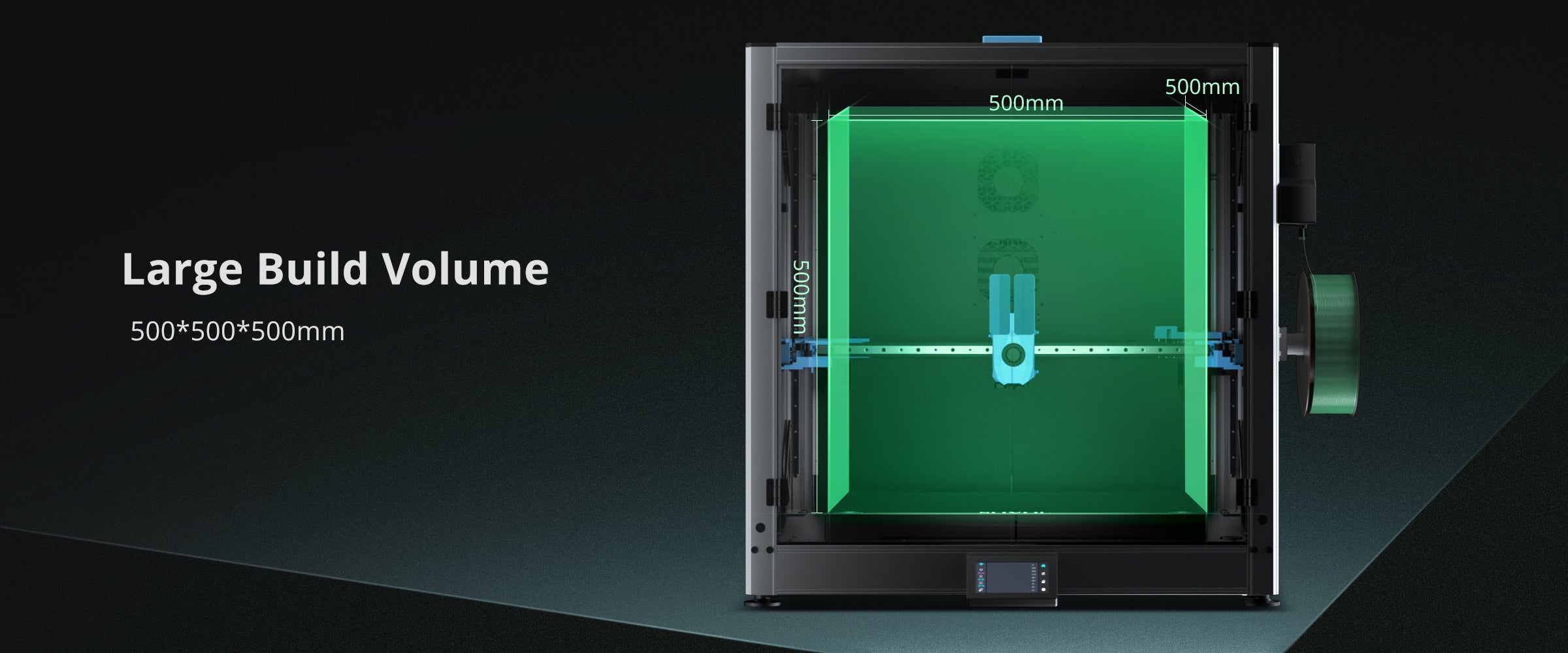

Large Build Volume
With up to 500×500×500mm³ of print space, SV08 Max empowers you to tackle industrial parts, full-scale prototypes, and oversized props — all in one go.

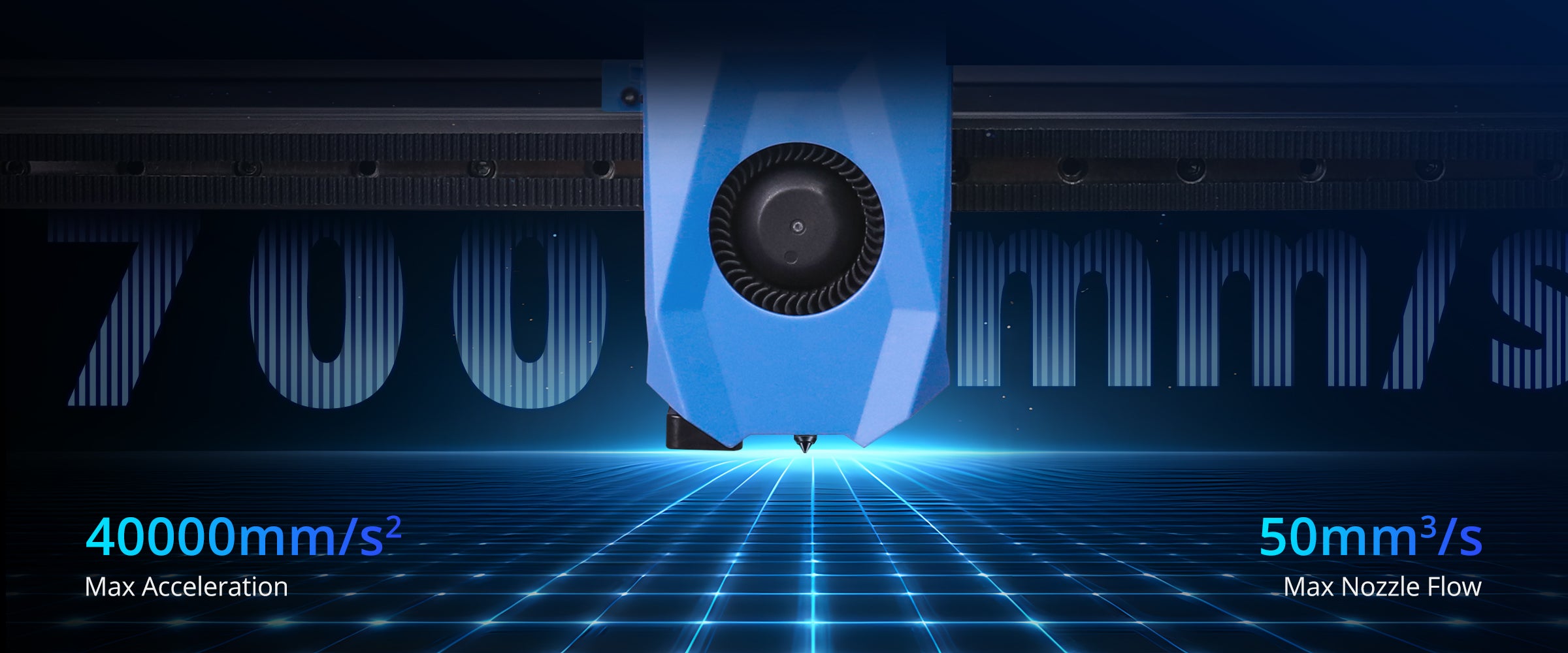

Go Big Without Slowing Down — SV08 Max redefines true large-format printing, slashing print times by up to 50%. From furniture and industrial parts to oversized collectibles, it brings blazing-fast performance with 40,000 mm/s² acceleration and a powerful 50mm³/s high-flow nozzle. Less waiting, more creating.

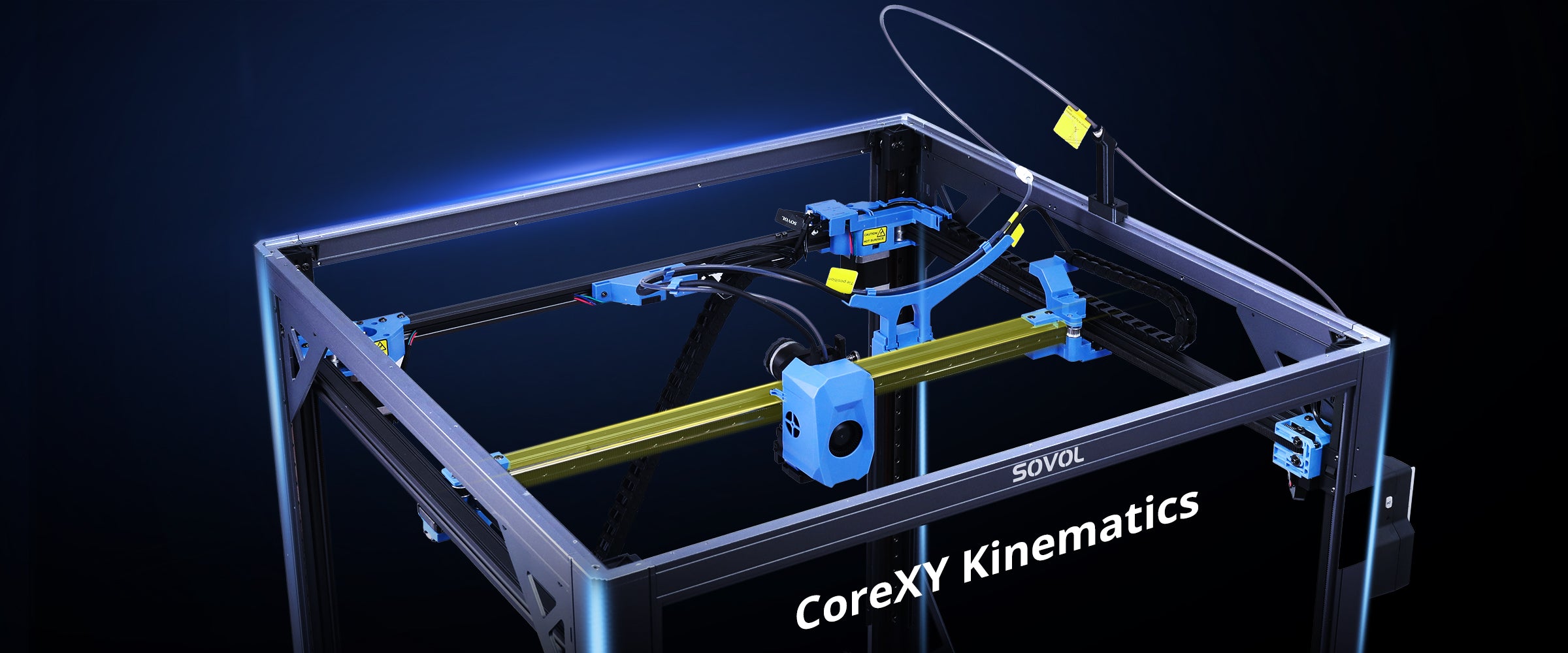

CoreXY Kinematics
With its compact design, minimal moving mass, and optimized motion path, the CoreXY system enables faster acceleration, reduced vibration, and unmatched print precision. Experience smoother, high-speed printing; perfect for large, complex models.

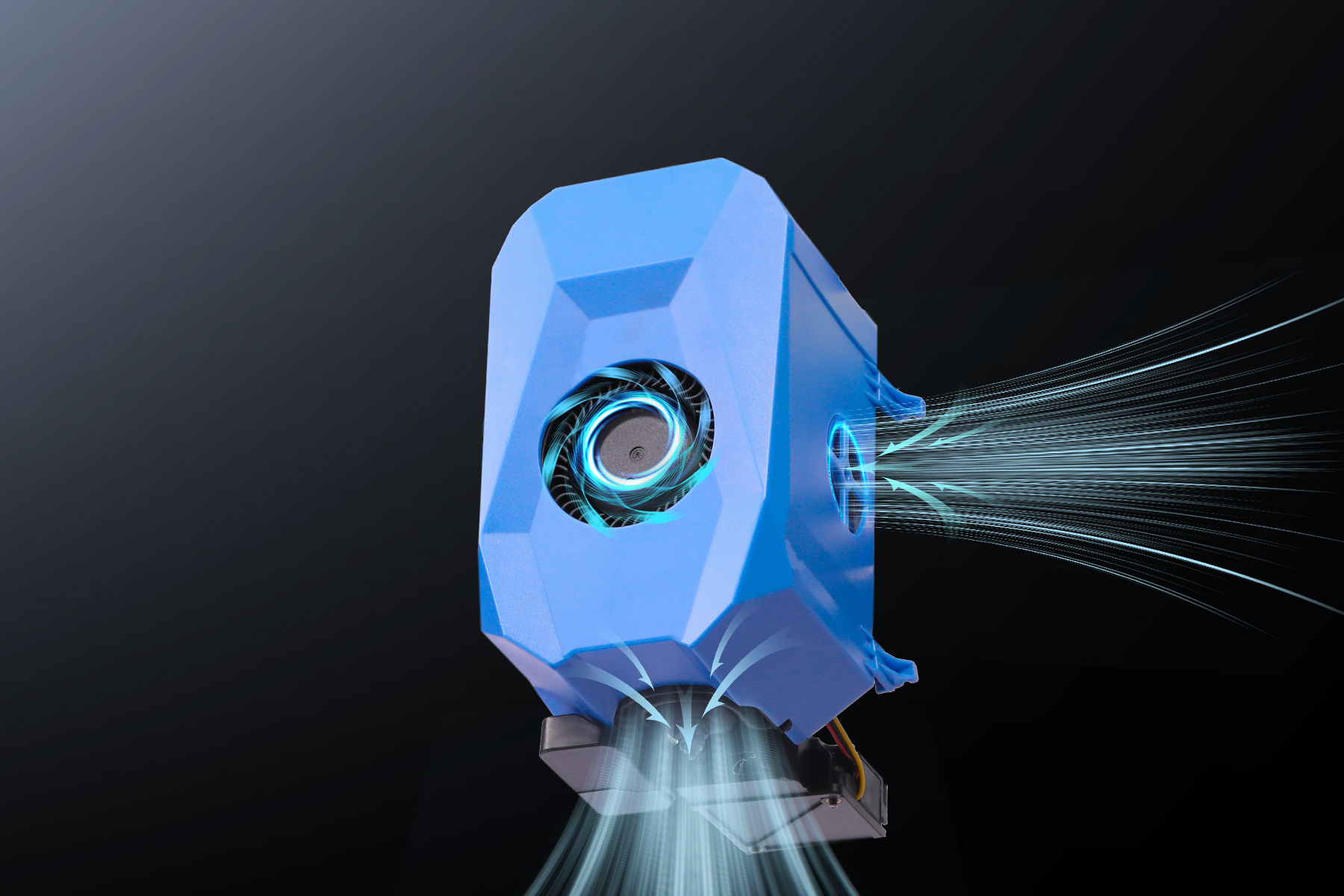

Efficient Cooling
Optimized airflow design ensures stable extrusion and consistent print quality during long, high-speed printing sessions.
Independent Motor
Independent motors on each axis deliver precise motion control, reduced vibration, and improved layer accuracy.

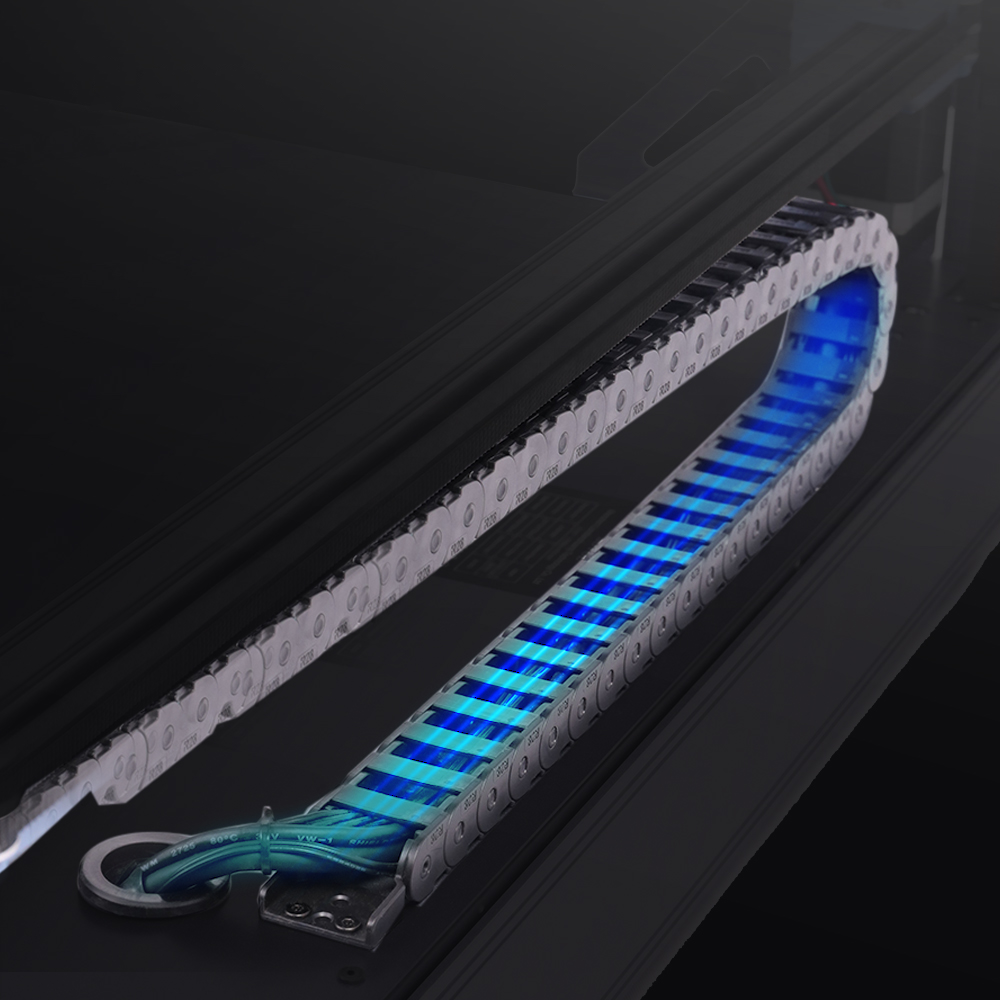

Clean Cable Management
Well-organized internal cable routing reduces wear, prevents interference, and improves long-term reliability.
Open Source
Fully open-source firmware and hardware enable deep customization, upgrades, and community-driven development.

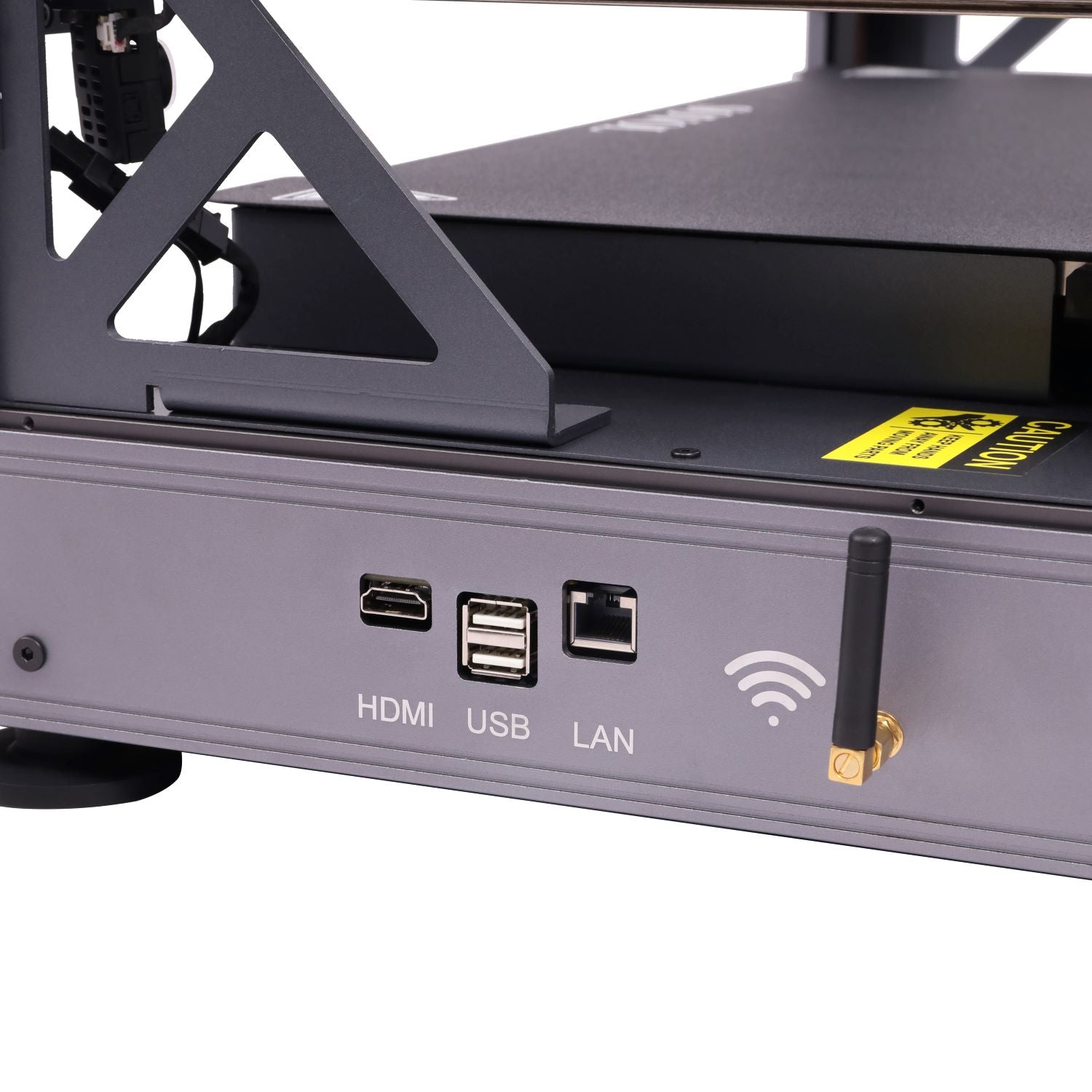

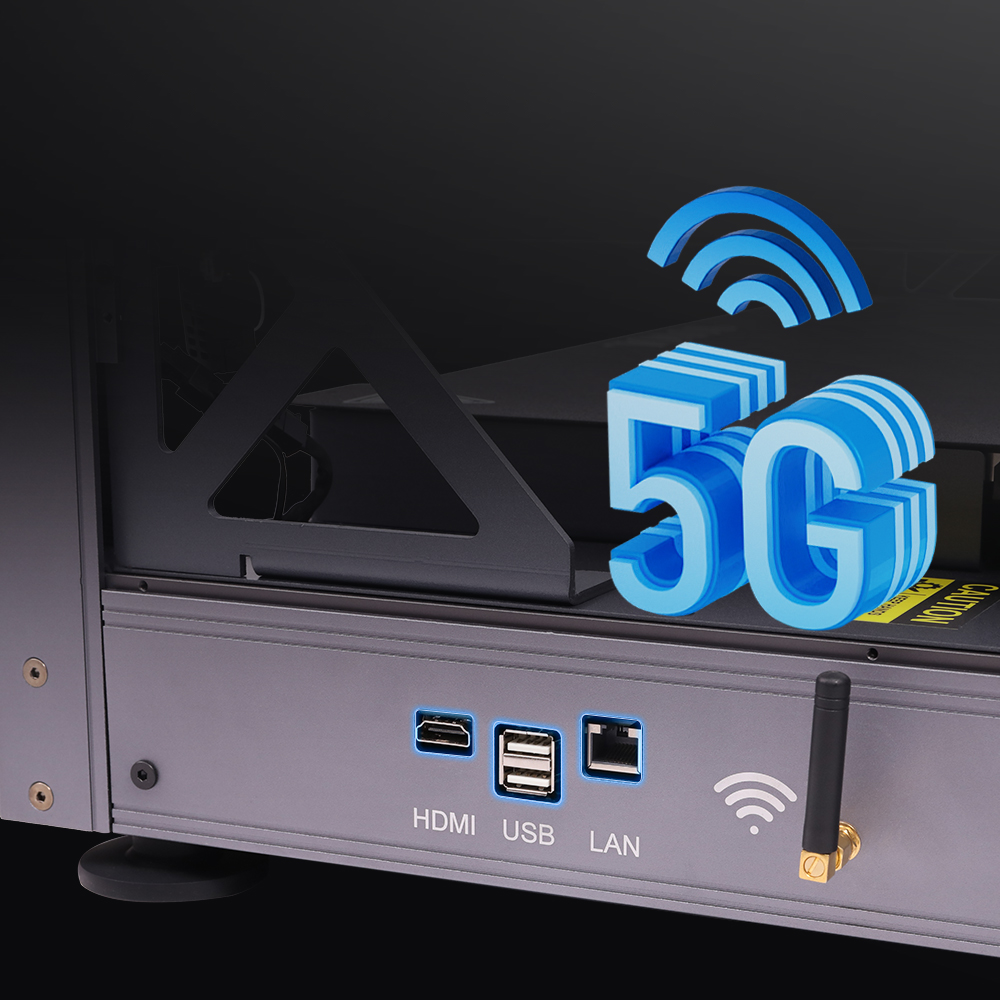

Multi-port Connectivity
Supports USB, LAN, and Wi-Fi connections for flexible workflow control and remote printing management.

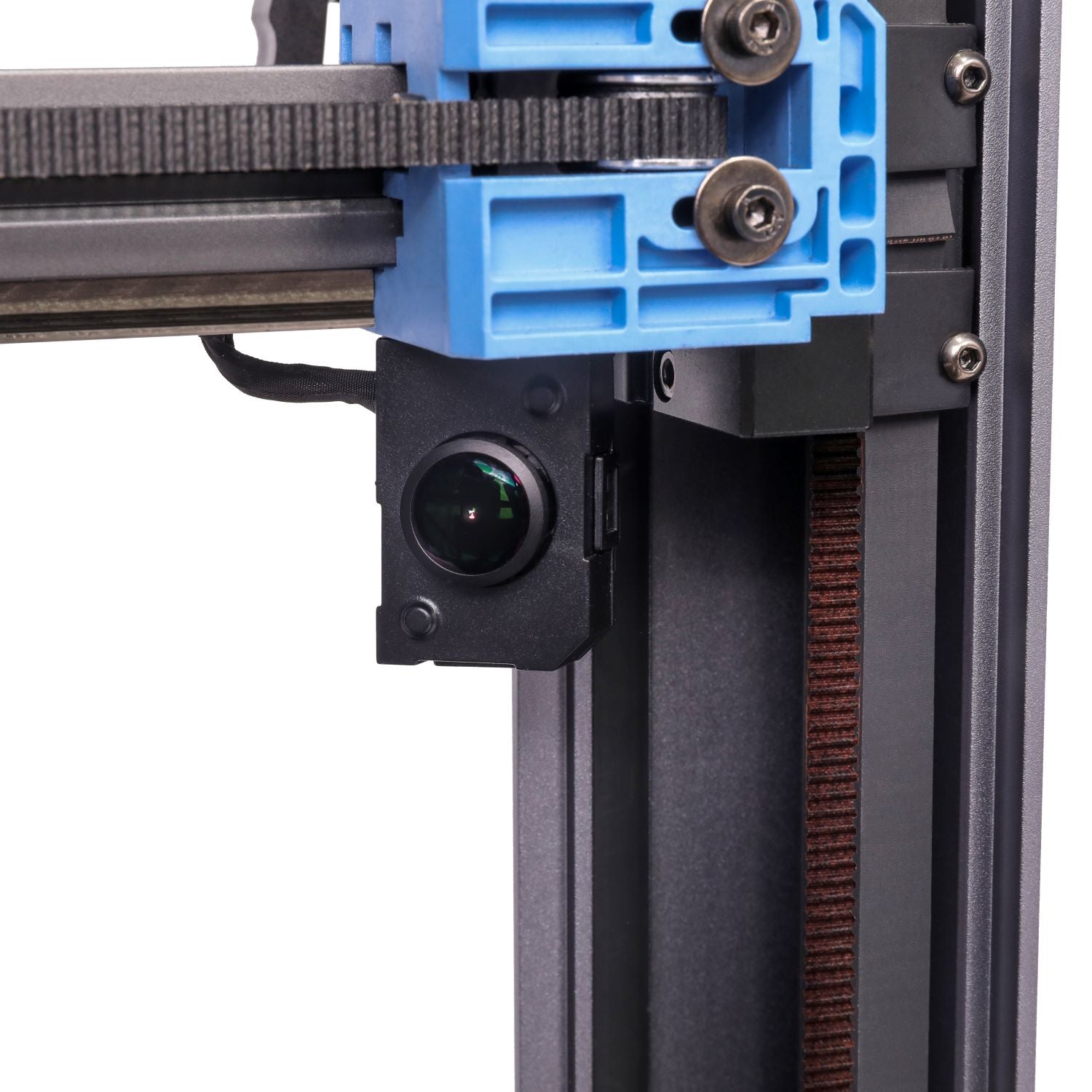

Built-in Camera
Integrated camera allows real-time remote monitoring and time-lapse recording for long and unattended prints.

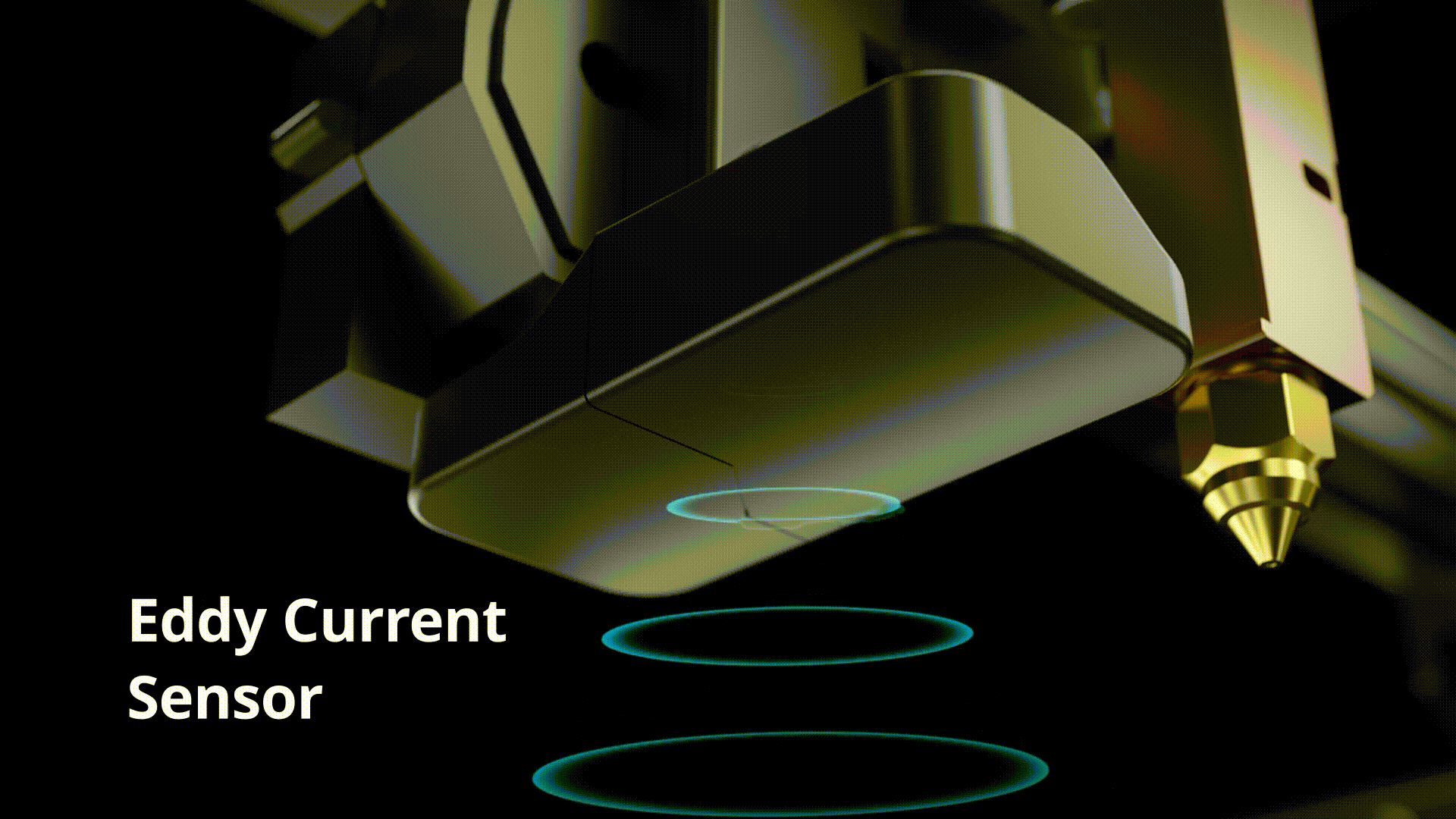

Eddy Current Sensor
Advanced Eddy Current Scanning system that delivers high-speed, contactless bed leveling with exceptional accuracy. It detects even the smallest surface deviations to ensure a perfectly leveled bed before every print.

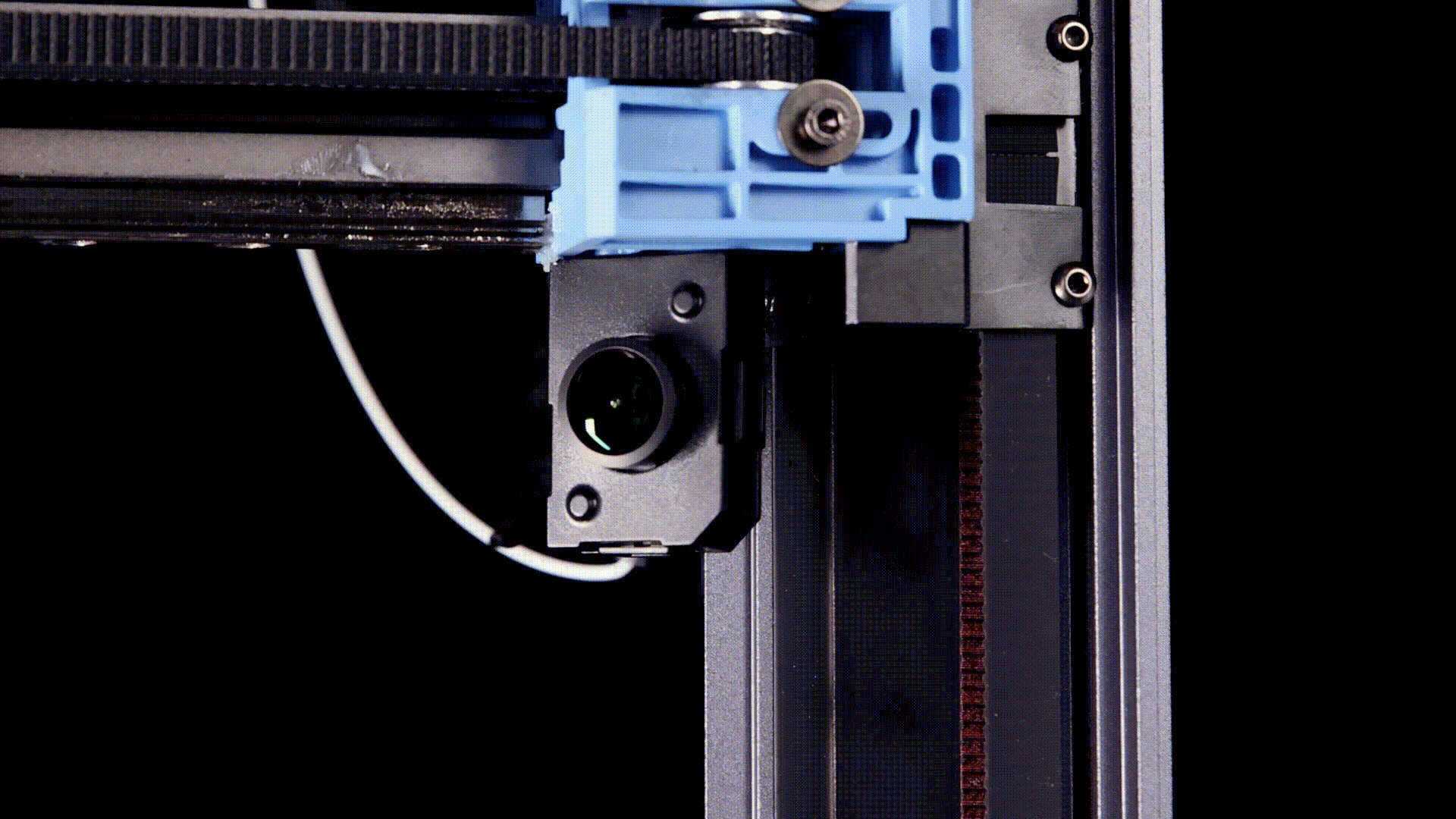

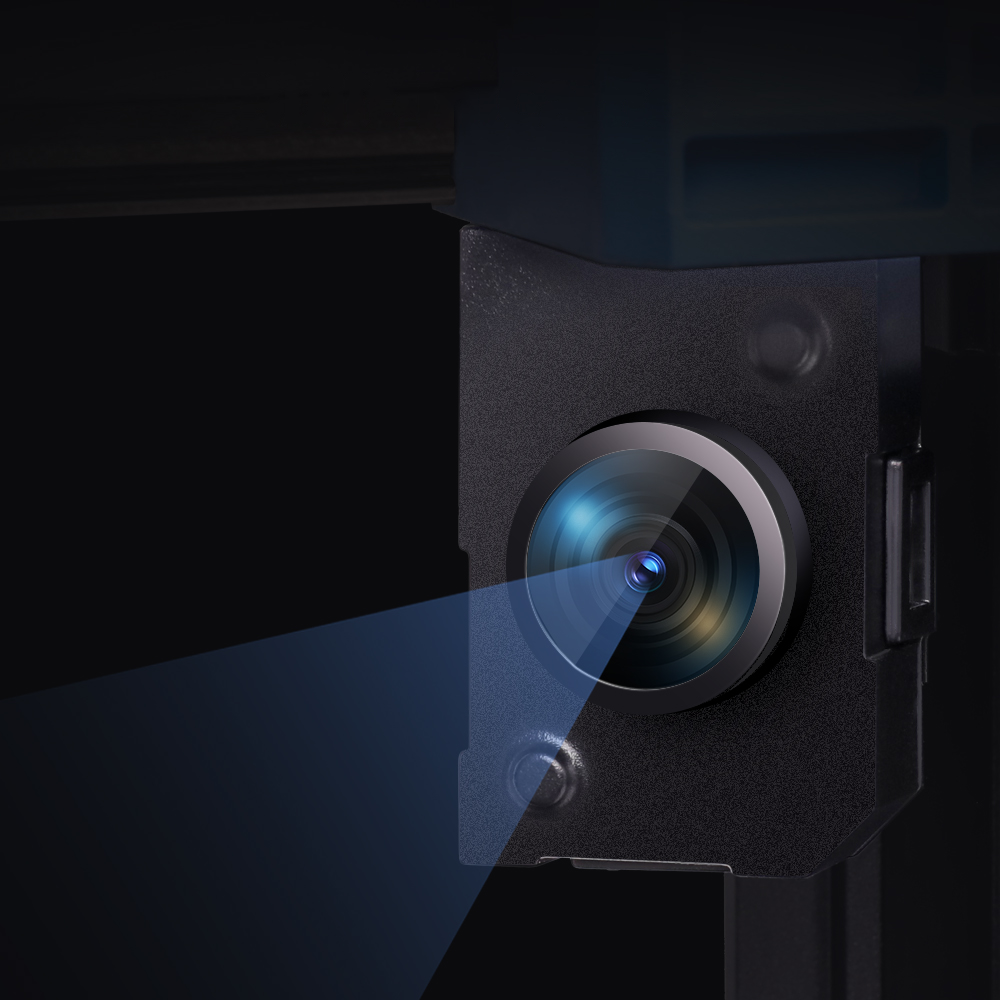

Camera & Remote Monitoring
SV08 Max comes equipped with a built-in 1280×720 HD camera, enabling seamless remote monitoring, time-lapse recording, and integration with Obico for advanced cloud-based control and intelligent print failure detection.

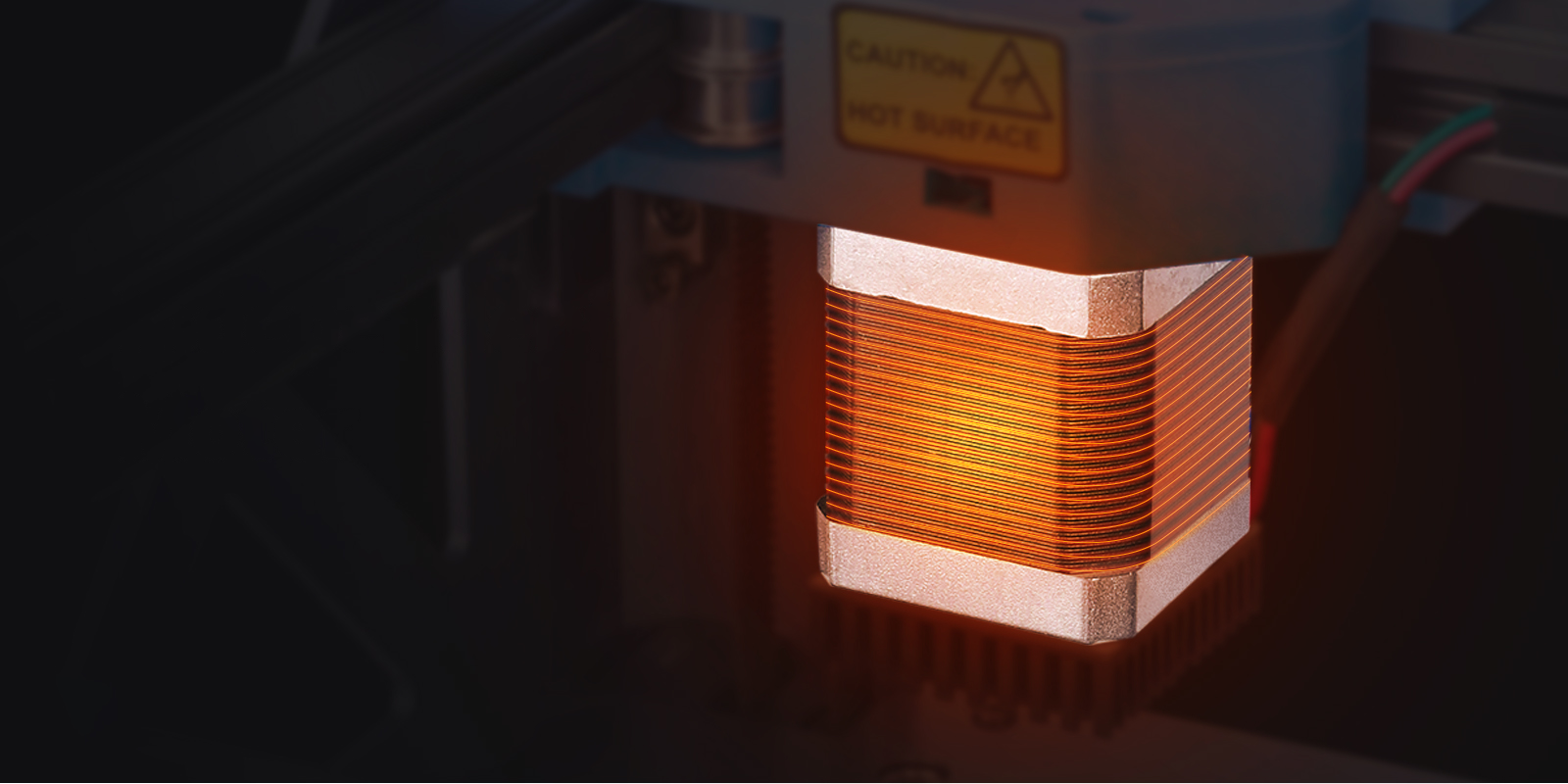

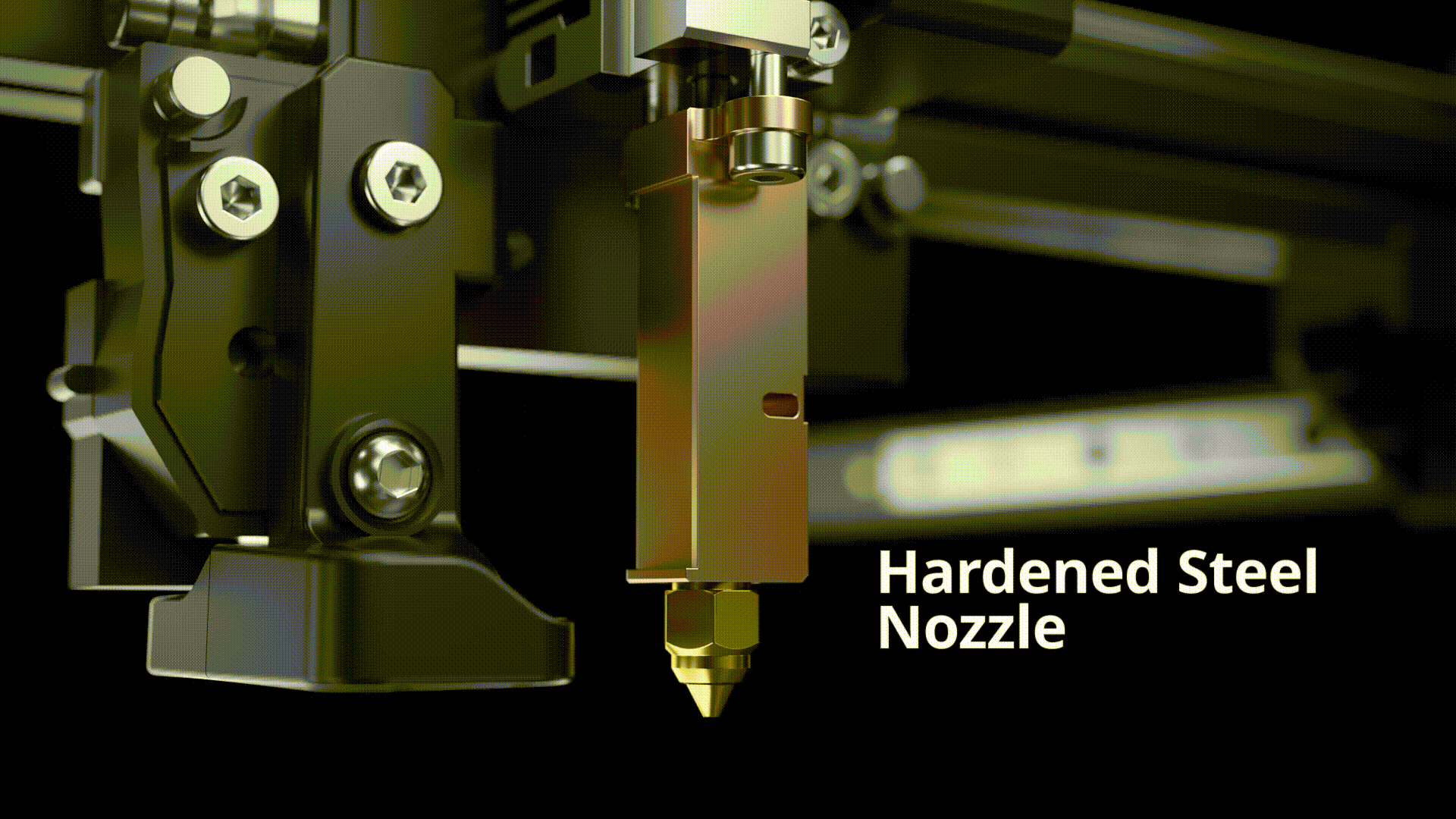

High-Temp Nozzle
The hotend supports a maximum temperature of 300°Cand comes with 2 standard 0.4mm nozzles. Optional nozzle sizes include0.4mm, 0.6mm, and 0.8mm(sold separately).

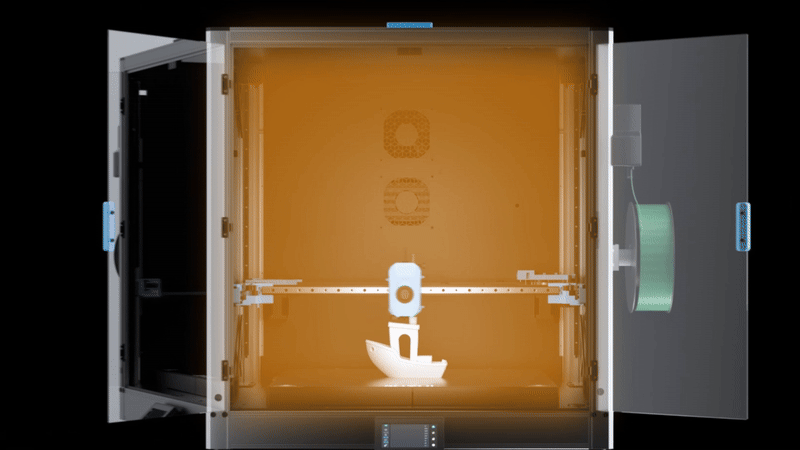

Optional Heated Chamber
SV08 Max is designed with a reserved interface for a Heated Chamber module, allowing users to upgrade their printer for high-temperature filament compatibility in the future. The heating module needs to be purchased separately.

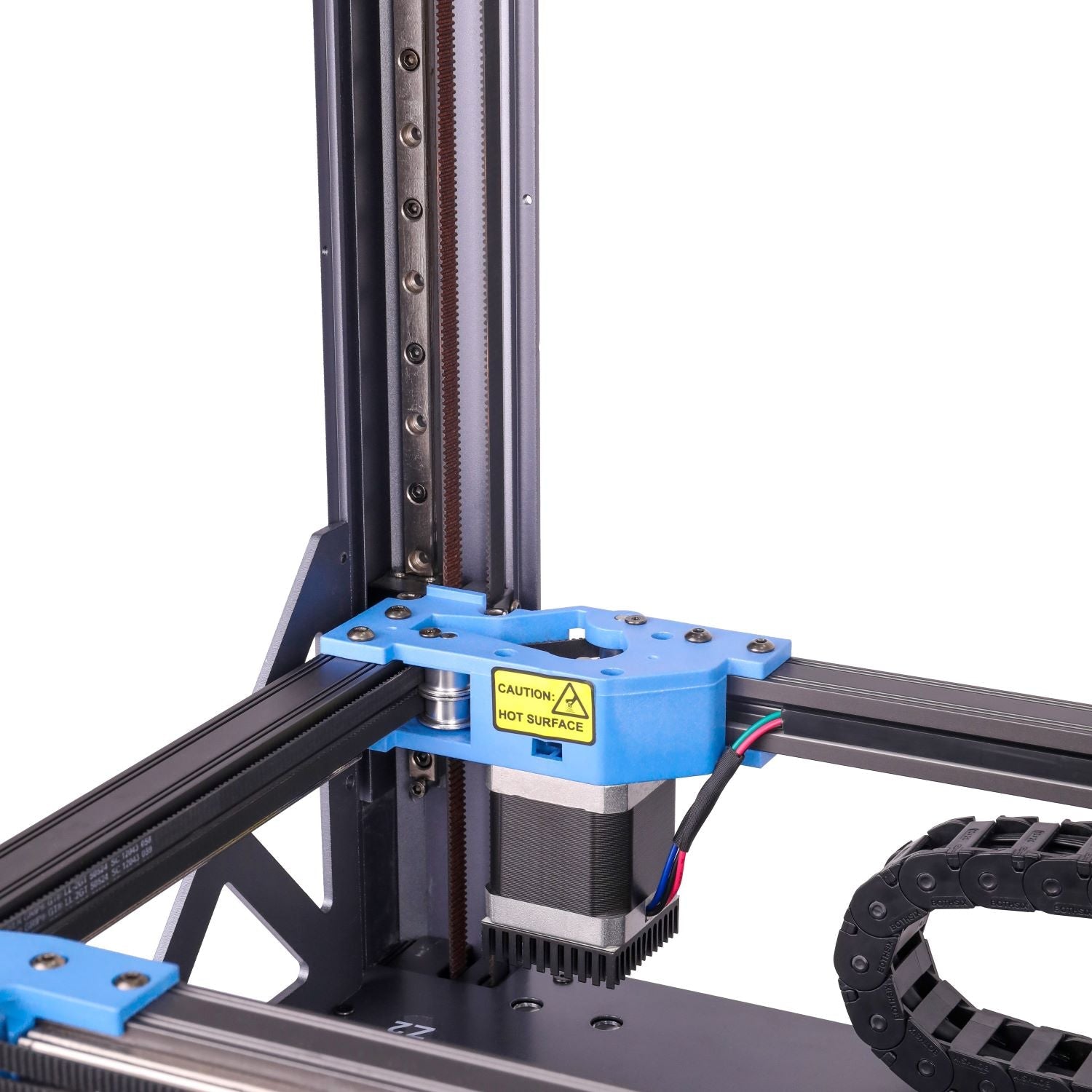

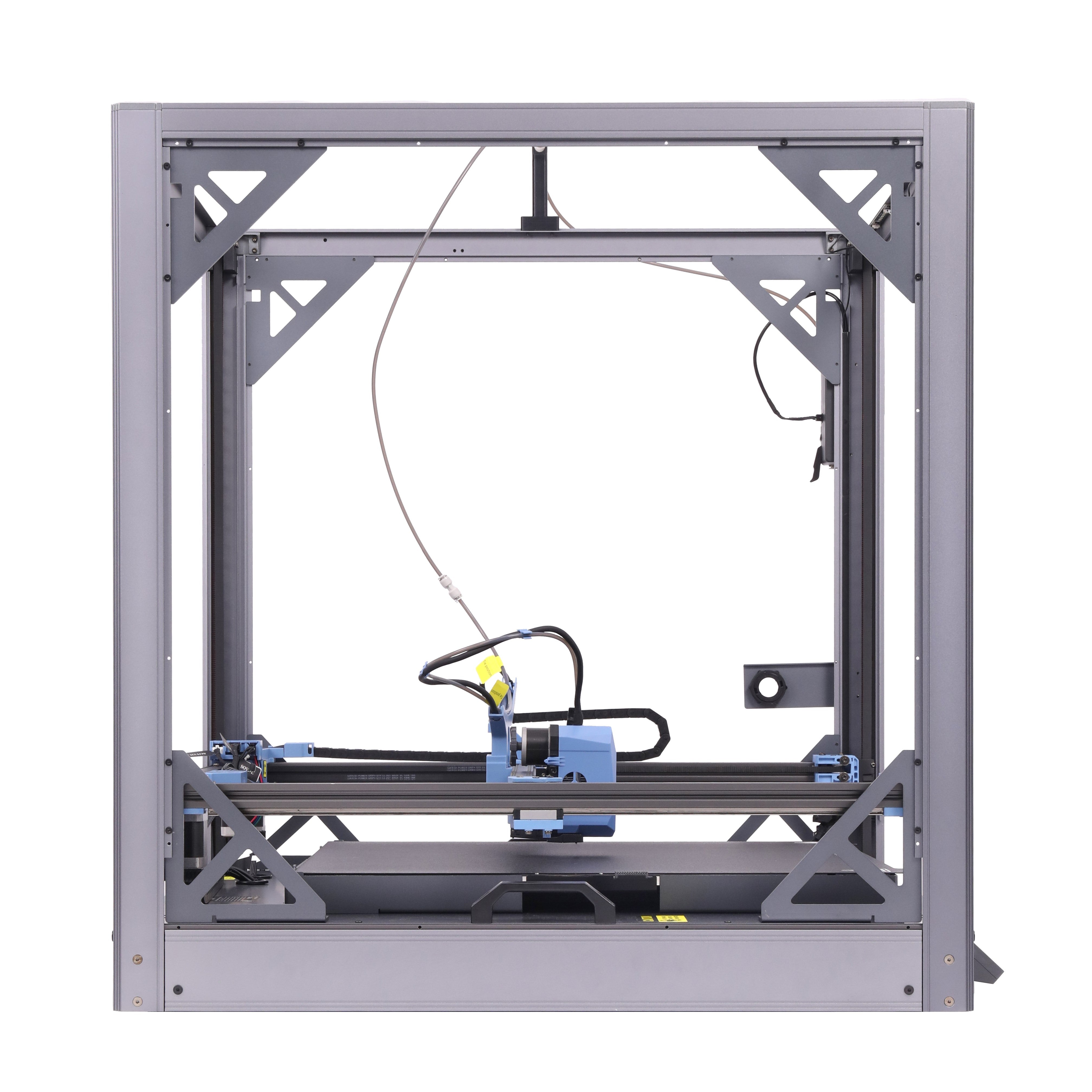

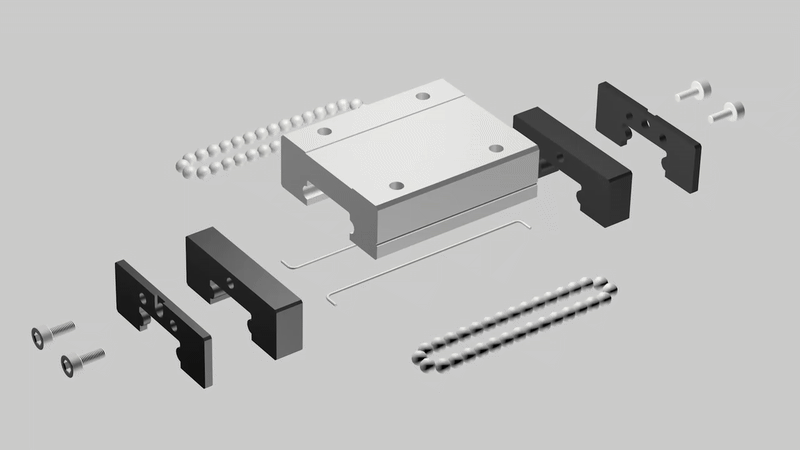

Industrial Grade Linear Rails
Industrial Grade Linear rails ensure smoother motion and superior control, enhancing print quality and reliability by minimizing artifacts. With greater rigidity and corrosion resistance, they offer extended durability for long-term performance.
For AII Your Needs
Perfectly handling a wider range of advanced and challenging filaments, such as PLA/TPU/PETG/ABS/ASA/PA/PC/PLA-CF/PETG-CF/HP-PLA, catering to more applications and diverse printing needs.

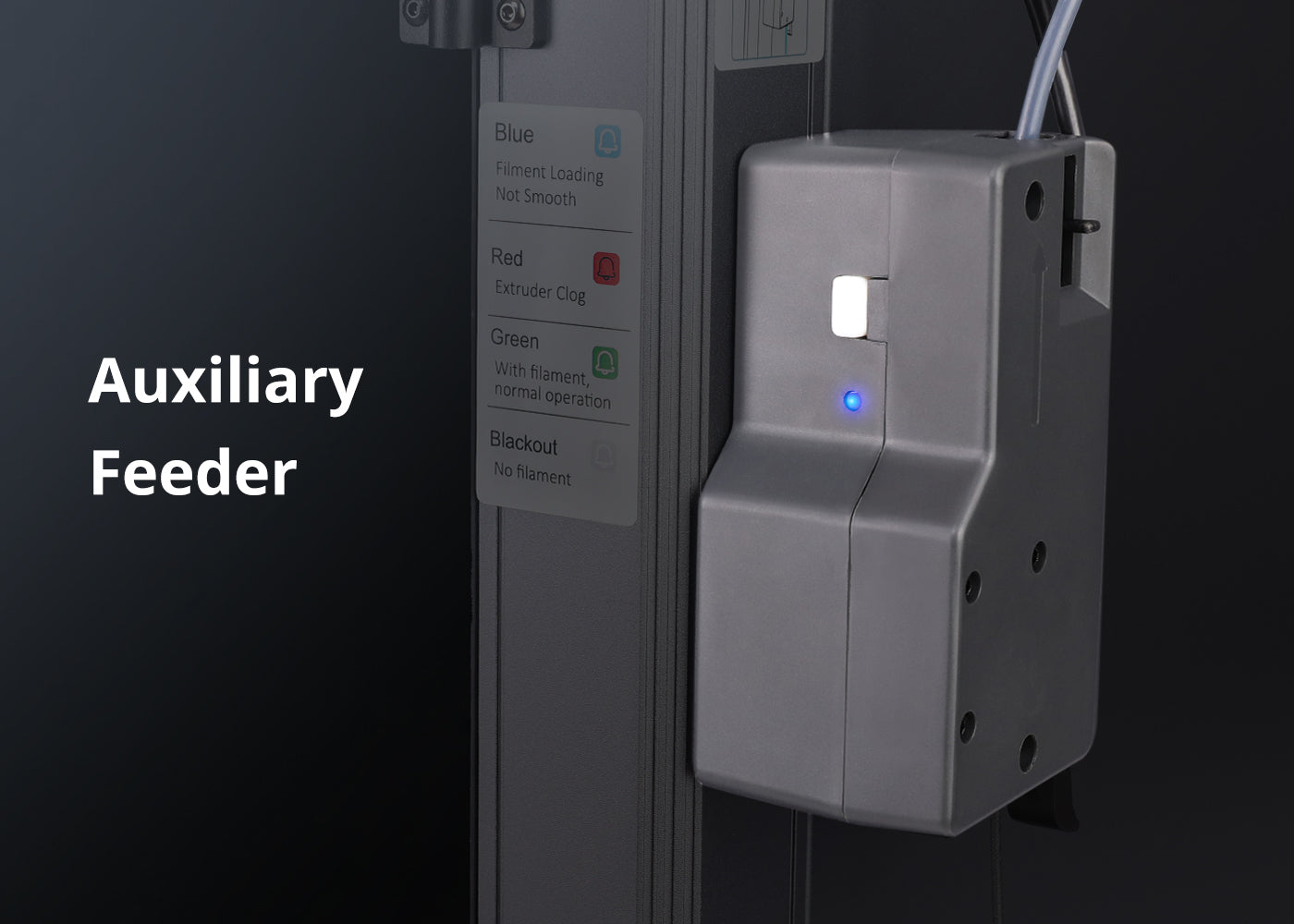

Auxiliary Feeder
The Smart Auxiliary Feeder System not only assists with smooth filament feeding, but also features tangle detection and clog detection to ensure uninterrupted printing. It actively monitors filament flow and prevents issues before they affect your print.

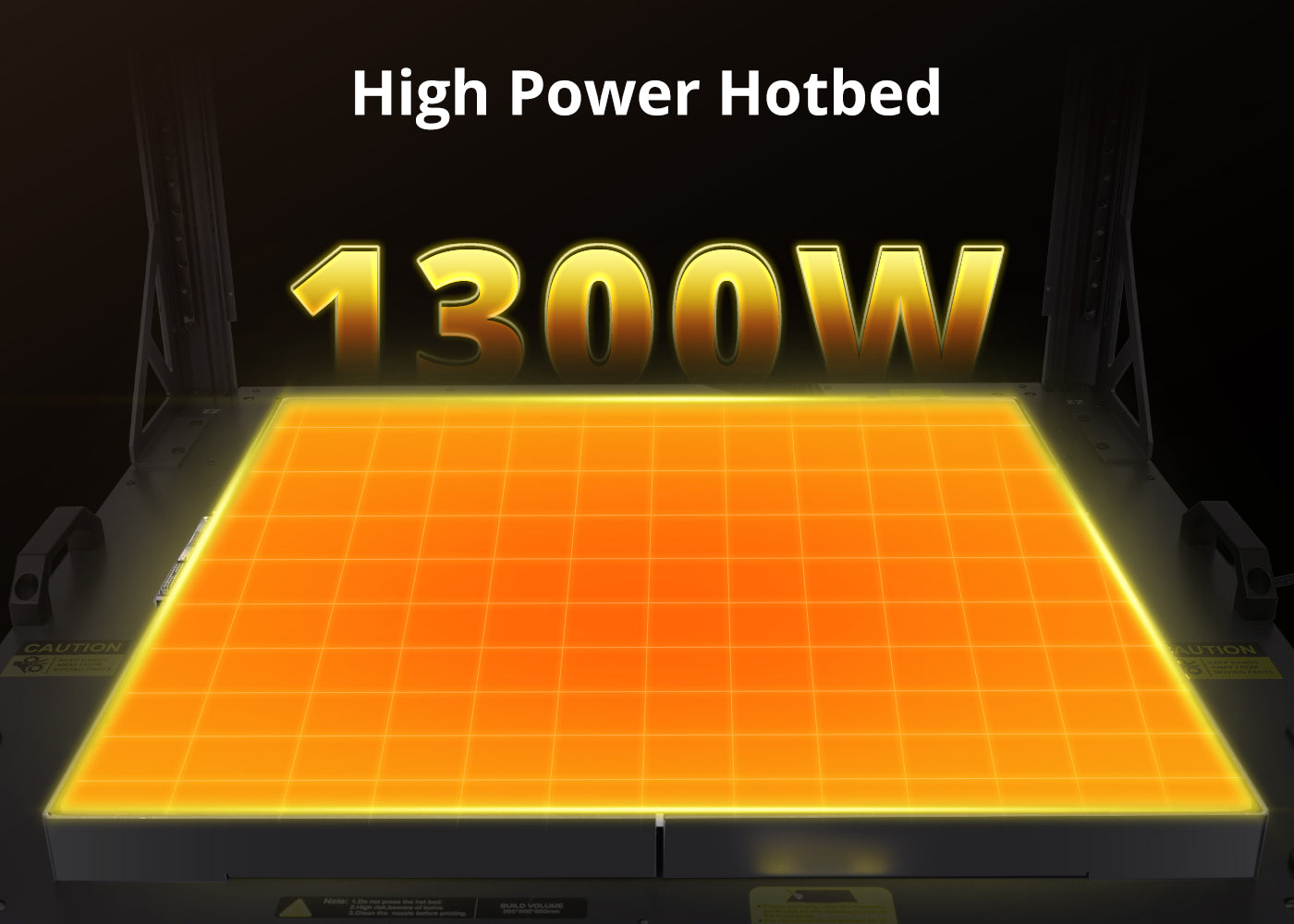

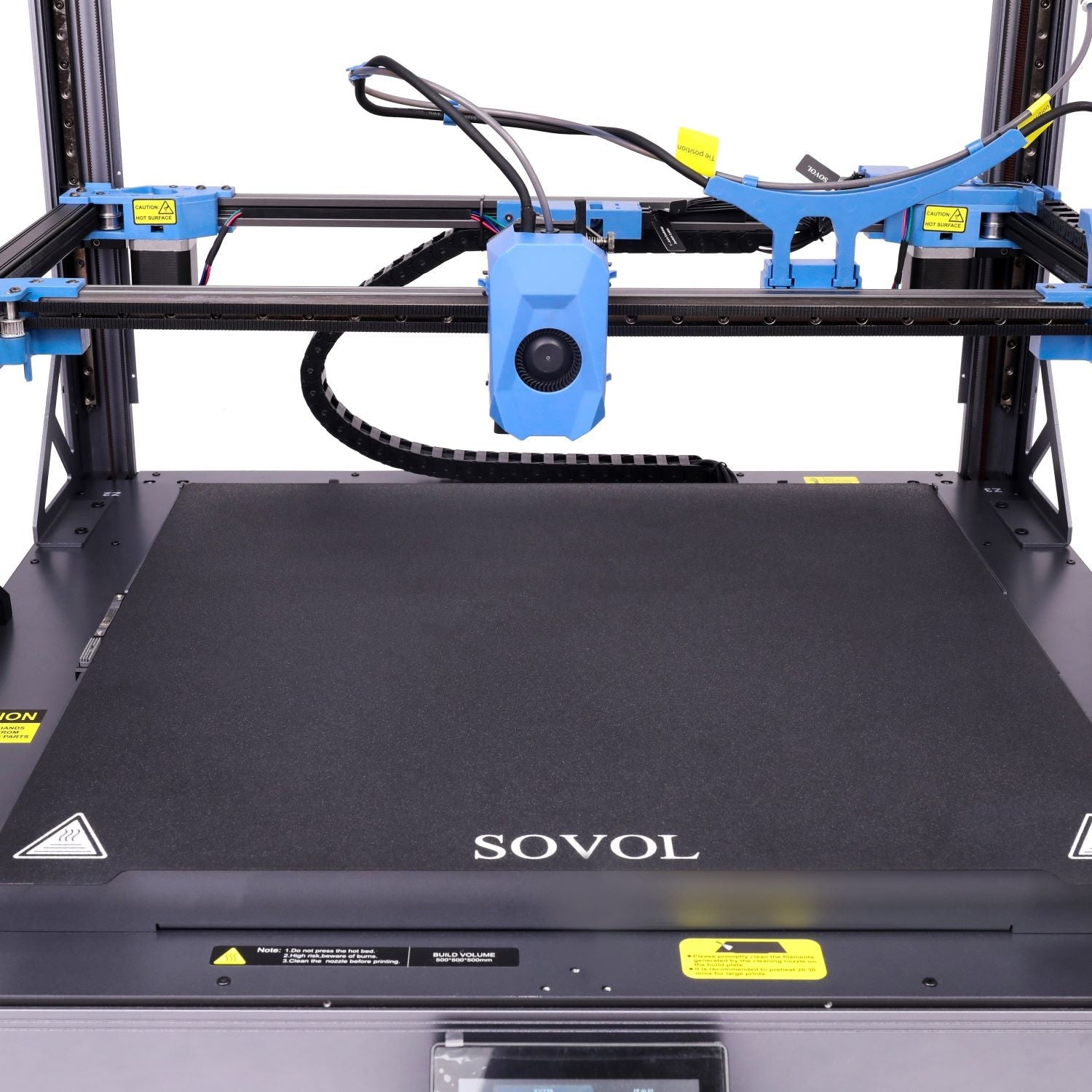

Thickened Hotbed
Equipped with a 8mm thick aluminum bed and 1300W of power, the SV08 Max’s hotbed delivers rapid and even heating across the entire surface. The reinforced structure minimizes warping, ensuring consistent adhesion and reliable prints — even on large models.
Perfect First Layer
By utilizing eddy current scanning and pressure-sensing touch points for automatic bed calibration, achieving a perfect first layer becomes effortless, requiring no action on your part.

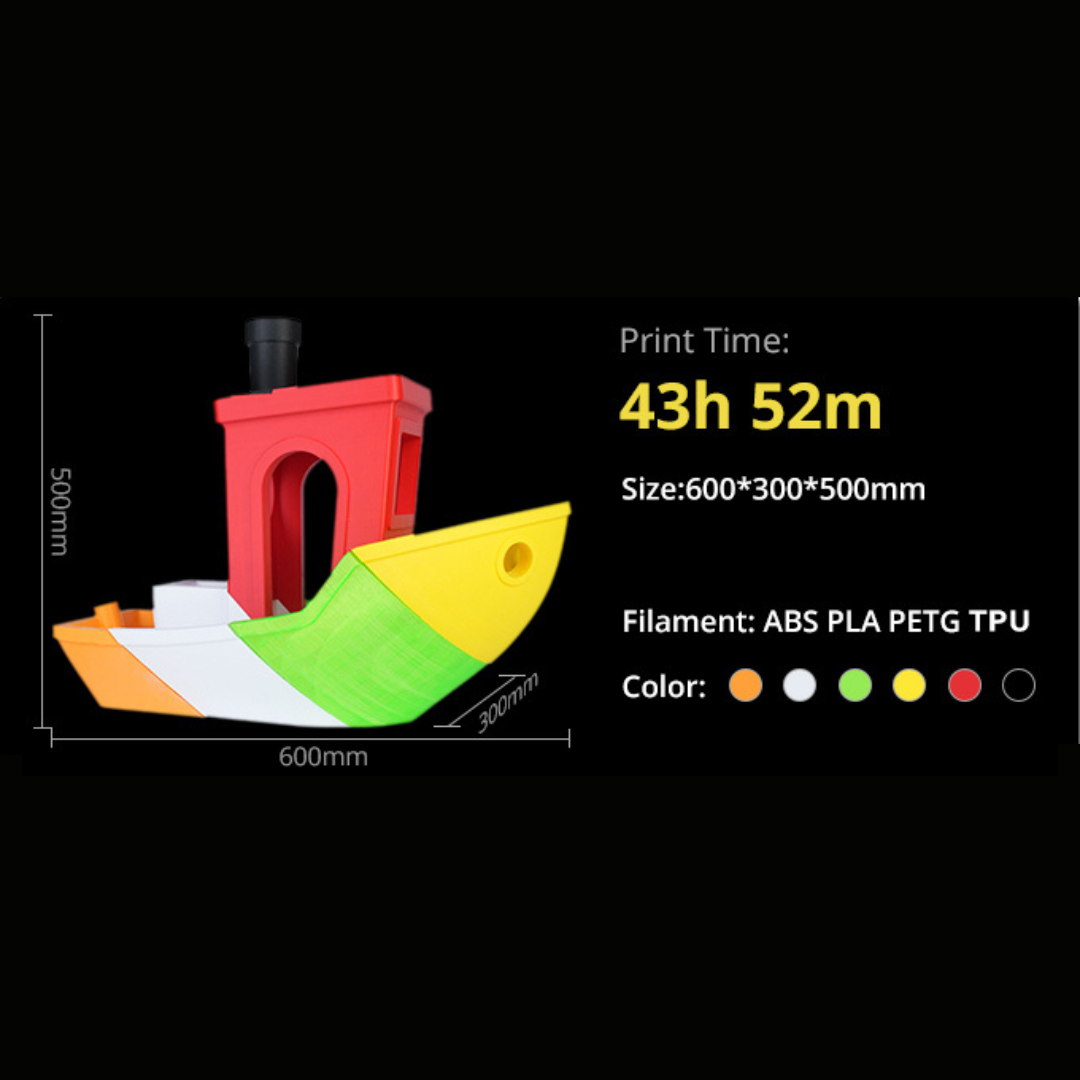

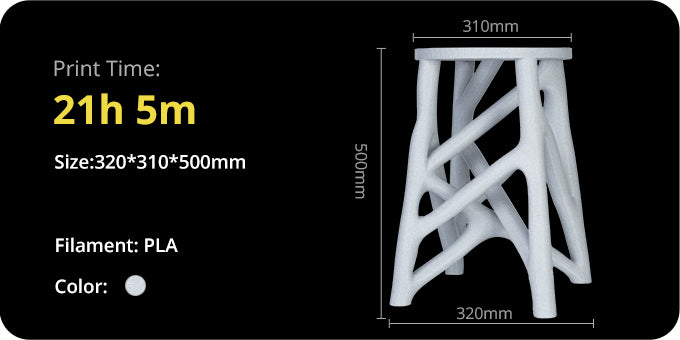

Works Printed by SV08 Max
Experience the impressive build quality and precision of the Sovol SV08 Max. These real prints demonstrate its large build volume, smooth finish, and high-speed performance — perfect for professional projects and creative designs alike.
Product specification
Printing Performance
- Build Volume (W×D×H): 500 × 500 × 500 mm
- Max Printing Speed: 700 mm/s
- Max Acceleration: 40,000 mm/s²
- Max Flow Rate: 50 mm³/s
- Nozzle Temperature: ≤ 300°C
- Hotbed Temperature: ≤ 100°C
- Nozzle Configuration:
Standard: 2 × 0.4 mm
Optional: 0.4 / 0.6 / 0.8 mm - Filament Diameter: 1.75 mm
System & Smart Features
- Control System: Klipper
- Slicer: OrcaSlicer
- RAM: 1GB (512MB + 512MB)
- Storage: 8GB eMMC
- Heating Method: Ceramic Heating
- Communication: CAN Bus
- Connections:
USB
Wi-Fi (2.4G / 5G)
HDMI
Ethernet
Intelligent protection and assistance features
- Filament Runout Detection: Yes
- Power Loss Resume Printing: Yes
- Filament Tangle / Clog Detection: Yes
- Auxiliary Feeding: Yes
Structure & Dimensions
- Motors
Z-axis: TMC2209 ×4
A-axis: TMC5160 ×1
B-axis: TMC5160 ×1
- Size Information
Printer Size: 700 × 710 × 750 mm
(excluding spool holder)
Printer Package Size: 810 × 820 × 360 mm
Enclosure Kit Package Size: 775 × 728 × 155 mm
